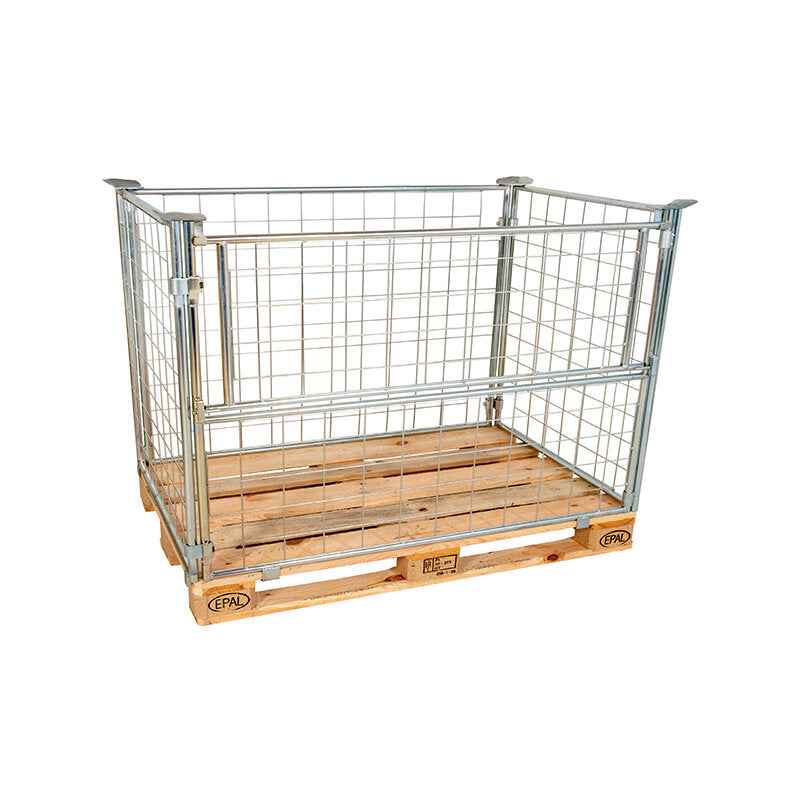

Assembly Instructions Lattice Box / Mesh Pallet Collar

Step-by-step instructions for assembling a mesh pallet collar on a Euro pallet:

Materials and Tools

• Mesh pallet collar (usually made of metal)
• Euro pallet (standard size 120 x 80 cm)
• Screwdriver or wrench (depending on the fastening method)
• Optional: Hammer (if needed)

Step-by-Step Instructions

1. Preparation

1. Clear space: Make sure you have enough space and a stable work surface.
2. Check Euro pallet: Inspect the Euro pallet for any damage or defects. It should be in good condition to securely support the mesh pallet collar.

2. Prepare the mesh pallet collar

1. Unpack the frame: Remove the mesh pallet collar from its packaging and lay out all parts.
2. Check parts: Ensure all parts are present and intact (e.g., mesh elements, corner pieces, fasteners).

3. Assemble the mesh pallet collar

1. Attach corner pieces:

   • Position the corner pieces of the mesh pallet collar on the corners of the Euro pallet.

   • Ensure that the corner pieces fit correctly onto the pallet and are securely positioned.
2. Insert mesh elements:

   • Insert the mesh elements into the designated holders of the corner pieces.

   • Make sure that the mesh elements are flush and securely attached to the corner pieces.
3. Fasten:

   • Use screws or bolts to secure the mesh elements and corner pieces (depending on the frame's construction).

   • Tighten all fasteners firmly to ensure the frame is stable. A screwdriver or wrench may be needed for this.

4. Final check

1. Check stability:

   • Verify that the mesh pallet collar sits firmly on the Euro pallet and that there are no wobbly parts.

   • Gently shake the frame to ensure there are no loose connections.
2. Make corrections:

   • If necessary, adjust the fasteners or insert additional screws to improve stability.

3. Usage:

   • The mesh pallet collar is now ready for use. You can load goods onto it or use it as storage space.

Safety Notes

• Wear protective gear: Wear gloves to prevent injuries when handling metal parts.
• Use tools safely: Ensure all tools are in good condition to prevent accidents.

With these instructions, the assembly of the mesh pallet collar on the Euro pallet should be straightforward. Good luck!
